X-Ray Inspection System : XIS-4000
PACKAGE & BULK : Big Size (Box, Bag) or Highly Dense (Big Can) Product Inspection
Single X-ray beam with top-down method, which is specialized in the inspection of foreign substances in large boxes and processed meat products.
Applicable Products
Applicable Products
-
Foreign substances system for box products
Frozen meat, Fresh meat, Burger patty, Snack box, Paper package, etc.
Main Functions
Main Functions
-
Convenient program operation
- Easy to operate with graphical sensitivity setting menu
- User-friendly program structure and data management program -
Always open and ready to meet customer requirements
- Offers customized services depending on each customer’s usage environment
- Develops and applies inspection algorithm suitable for each product’s characteristics -
A system applied with patented technology for network-integrated operation
- Remote control and entire image storage solutions on investigated products
Technical Specification
Inspectable Object Size (mm)
| H | W |
|---|---|
| 450 | 270 |
| 420 | 343 |
| 360 | 379 |
| 300 | 415 |
| 240 | 451 |
| 180 | 487 |
| 120 | 523 |
| 60 | 559 |
| 0 | 580 |
X-Ray Object Image
XIS-4000 SPECIFICATIONS
| Model | XIS-4000 |
|---|---|
| Dimension (mm) | 1,800(W) x 1,030(L) x 1,900(H) |
| Power Consumption | 1.5kW |
| Weight (kg) | 580 |
| Conveyor Belt Width (mm) | 600 |
| X-Ray Inspection Max. Speed (EA/Min) | 200 |
| Cooling Type | FAN (Standard) or Air-Conditioner (Option) |
| Display | 17″ LCD Touchmonitor |
| Conveyor Height (mm) | Apply the height requested by the client |
| X-Ray Output | 80kVp / 100kVp / 150kVp |
| X-Ray Leakage | Less than legal limit |
| Detector Type | Linear Sensor |
| Pixel Size (mm) | 0.4 |
| Software | intellisense X-Ray Inspection System Software |
| Operating System | Windows Embedded OS |
| Power Supply | 220~230VAC / 50~60Hz |
| Operating Environment | Ambient temperature : 5~35°C / Humidity : 30~80% RH (No Condensing) |

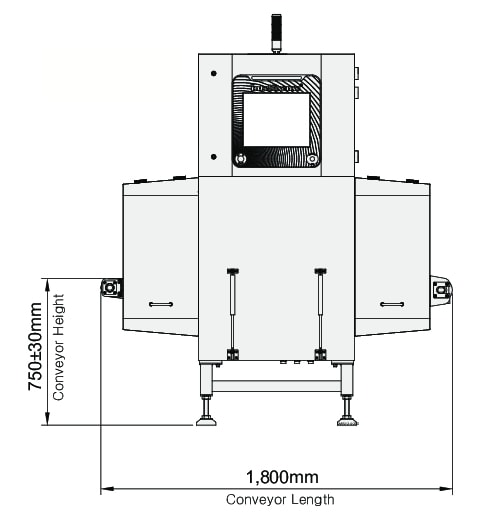

Layouts
Installation Cases
Video
